Sumitomo
2600W7S

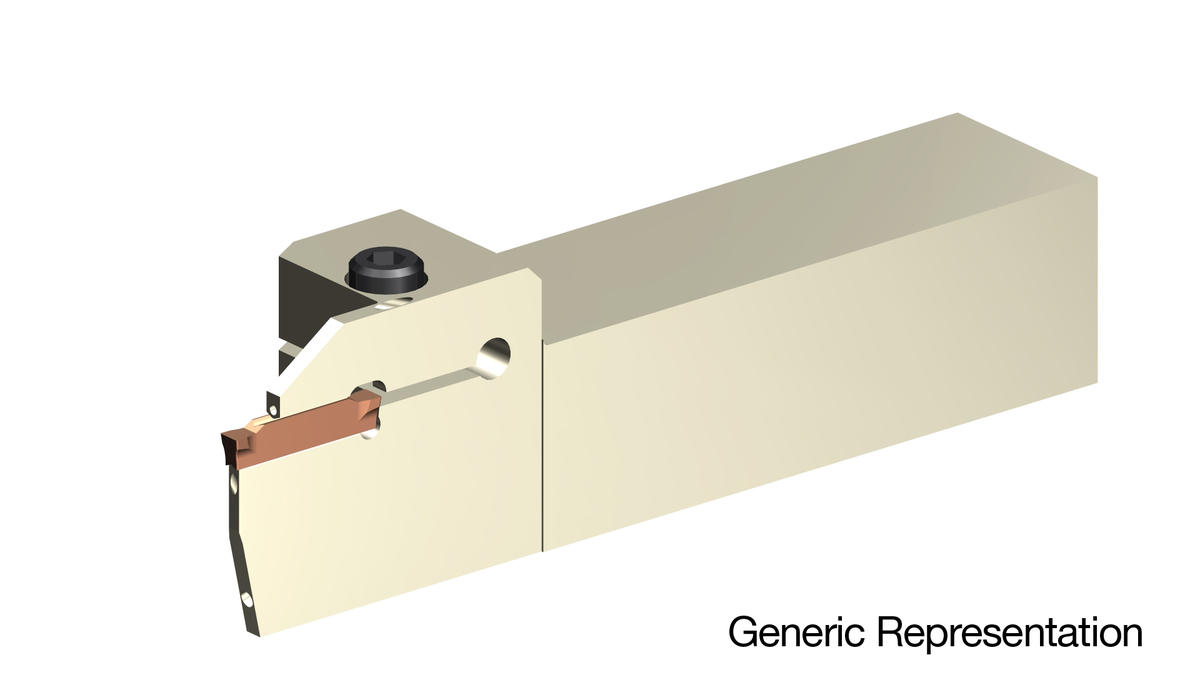

GNDLR166K-100J
Specifications
| Series | GND |
|---|---|
| Short Description | Groove Width 6mm, 6.35mm, 0.236", 0.250", Max Groove Depth 1 Inch, Deep OD Grooving Tool, Internal Coolant |
| Insert Width | 0.25 |
| Shank Width | 1 |
| Coolant Through | Yes |
| Shank Height | 1 |
| Head Length | 1.969 |
| Insert Compatibility | GCMN6250R0.5, 6mm, 6.35mm, 0.236", 0.250" |
| Insert Holding Method | Clamp |
| Toolholder Style | Deep OD Grooving Tool, Internal Coolant |
| Overall Length (OAL) | 5 |
