Titan Cutting Tools
CS36182

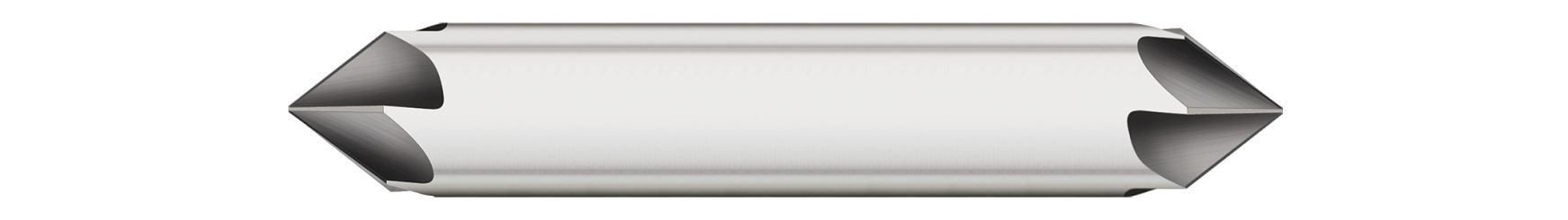

Titan Cutting Tools CS36182
Specifications
| Short Description | 0.2500" (1/4) Shank DIA x 100° Included Angle DE- 6 FL - Uncoated |
|---|---|
| Long Description | 0.2500" (1/4) Shank DIA x 100° Included Angle x 2.0000" (2) Overall Length Carbide Countersink DE, 6 Flutes, Uncoated |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 6 |
| Overall Length | 2.0000" (2) |
| Cutter Diameter | 0.2500" (1/4) |
| Profile | Countersink |
| Metric | N |
| Substrate | Carbide |
| Coating | UNCOATED |
| Angle per Side | 50 |
| Included Angle | 100 |
