Titan Cutting Tools
TC13313
Titan Cutting Tools TC13313
Specifications
| Corner Radius | 0.0200" |
|---|---|
| Short Description | 5 FL - 0.1250" (1/8) Cutter DIA x 0.0200" Radius x 0.5000" (1/2) LOC - ALCRO-Max Coated |
| Overall Length | 2.0000" (2) |

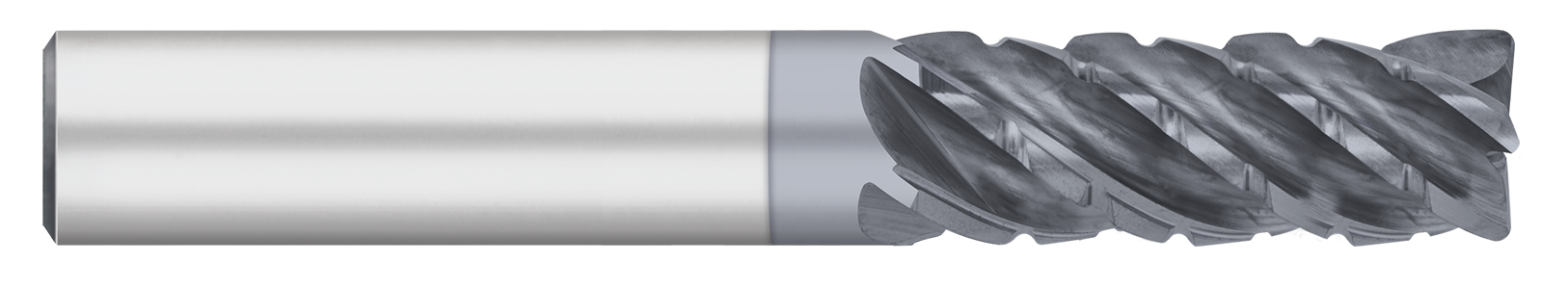

| Long Description | 0.1250" (1/8) Cutter DIA x 0.0200" Radius x 0.5000" (1/2) Length of Cut Carbide Variable Index Corner Radius End Mill Chipbreaker, 5 Flutes, ALCRO-Max Coated |
| Metric | N |
| Length of Cut | 0.5000" (1/2) |
| Coating | ALCRO-MAX |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 5 |
| Cutter Diameter | 0.1250" (1/8) |
| Profile | Corner Radius |
| Substrate | carbide |
