Titan Cutting Tools
TC13383

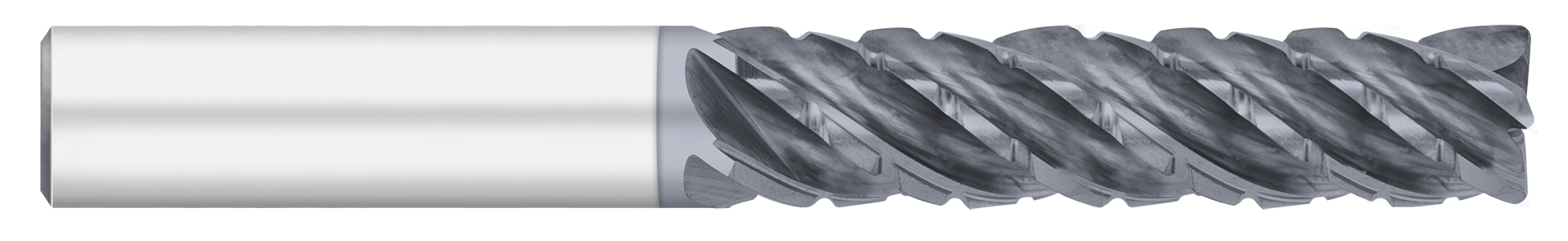

Titan Cutting Tools TC13383
Specifications
| Corner Radius | 0.0300" |
|---|---|
| Short Description | 5 FL - 0.3750" (3/8) Cutter DIA x 0.0300" Radius x 1.2500" (1-1/4) LOC - ALCRO-Max Coated |
| Overall Length | 3.0000" (3) |
| Long Description | 0.3750" (3/8) Cutter DIA x 0.0300" Radius x 1.2500" (1-1/4) Length of Cut Carbide Variable Index Corner Radius End Mill Chipbreaker, 5 Flutes, ALCRO-Max Coated |
| Metric | N |
| Length of Cut | 1.2500" (1-1/4) |
| Coating | ALCRO-MAX |
| Shank Diameter | 0.3750" (3/8) |
| Flutes | 5 |
| Cutter Diameter | 0.3750" (3/8) |
| Profile | Corner Radius |
| Substrate | carbide |
