Titan Cutting Tools
TC20740
Titan Cutting Tools TC20740
Specifications
| Short Description | 4 FL - 0.6250" (5/8) Cutter DIA x 1.6250" (1-5/8) LOC - Uncoated |
|---|---|

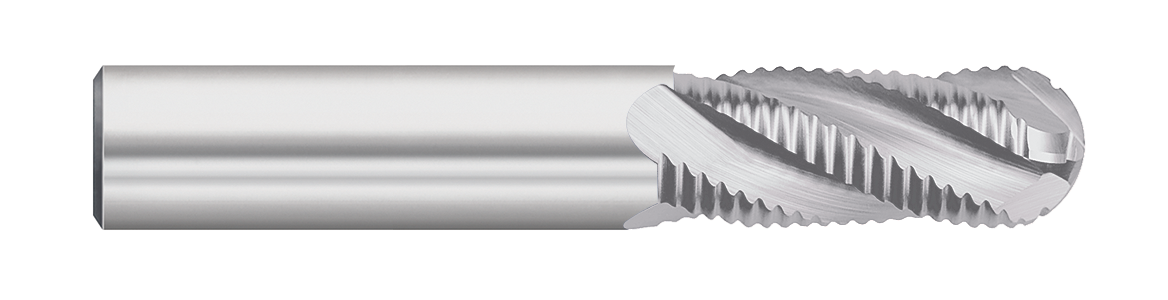

| Long Description | 0.6250" (5/8) Cutter DIA x 1.6250" (1-5/8) Length of Cut Carbide Fine Pitch Ball Rougher, 4 Flutes, Uncoated |
| Shank Diameter | 0.6250" (5/8) |
| Overall Length | 3.5000" (3-1/2) |
| Flutes | 4 |
| Cutter Diameter | 0.6250" (5/8) |
| Profile | Ball |
| Metric | N |
| Substrate | carbide |
| Coating | UNCOATED |
| Length of Cut | 1.6250" (1-5/8) |
