Titan Cutting Tools
TC21340

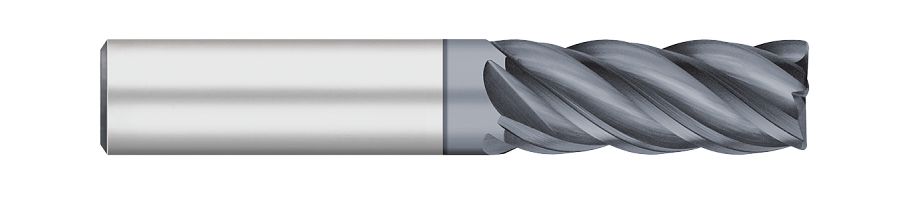

Variable Index Corner Radius End Mill
Specifications
| Corner Radius | 0.0200" |
|---|---|
| Short Description | 5 FL - 0.6250" (5/8) Cutter DIA x 0.0200" Radius x 1.6250" (1-5/8) LOC - ALCRO-Max Coated |
| Overall Length | 3.5000" (3-1/2) |
| Long Description | 0.6250" (5/8) Cutter DIA x 0.0200" Radius x 1.6250" (1-5/8) Length of Cut Carbide Variable Index Corner Radius End Mill, 5 Flutes, ALCRO-Max Coated |
| Metric | N |
| Length of Cut | 1.6250" (1-5/8) |
| Coating | ALCRO-MAX |
| Weight | 0.606 |
| Shank Diameter | 0.6250" (5/8) |
| Flutes | 5 |
| Cutter Diameter | 0.6250" (5/8) |
| Profile | Corner Radius |
| Substrate | carbide |
