Titan Cutting Tools
TC28014
251761
Specifications
| Corner Radius | 0.0300" |
|---|---|
| Short Description | 5 FL - 0.7500" (3/4) Cutter DIA x 0.0300" Radius x 3.0000" (3) LOC - ALCRO-Max Coated |
| Overall Length | 6.0000" (6) |

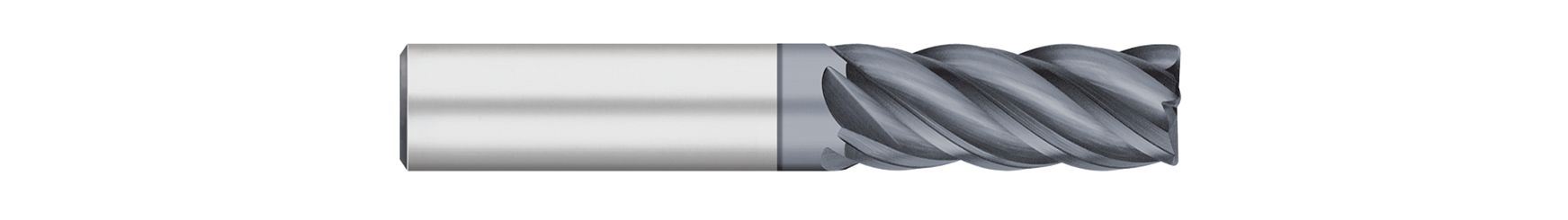

| Long Description | 0.7500" (3/4) Cutter DIA x 0.0300" Radius x 3.0000" (3) Length of Cut Carbide Variable Index Corner Radius End Mill, 5 Flutes, ALCRO-Max Coated |
| Metric | N |
| Length of Cut | 3.0000" (3) |
| Coating | ALCRO-MAX |
| Weight | 1.021 |
| Shank Diameter | 0.7500" (3/4) |
| Flutes | 5 |
| Cutter Diameter | 0.7500" (3/4) |
| Substrate | Carbide |
| L.O.C | 3 |
| OAL | 6 |
| Radius | 0.03 |
