Titan Cutting Tools
TC28202
278312
Specifications
| Corner Radius | 0.0300" |
|---|---|

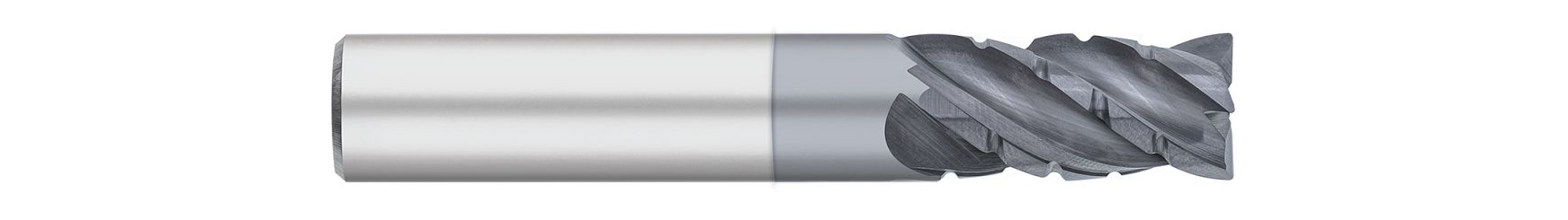

| Short Description | 4 FL - 0.2500" (1/4) Cutter DIA x 0.0300" Radius x 1.5000" (1-1/2) LOC - ALCRO-Max Coated |
| Overall Length | 4.0000" (4) |
| Long Description | 0.2500" (1/4) Cutter DIA x 0.0300" Radius x 1.5000" (1-1/2) Length of Cut Carbide Variable Index Corner Radius End Mill Chipbreaker, 4 Flutes, ALCRO-Max Coated |
| Metric | N |
| Length of Cut | 1.5000" (1-1/2) |
| Coating | ALCRO-MAX |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 4 |
| Cutter Diameter | 0.2500" (1/4) |
| Substrate | Carbide |
