Titan Cutting Tools
TC34740
242738
Specifications

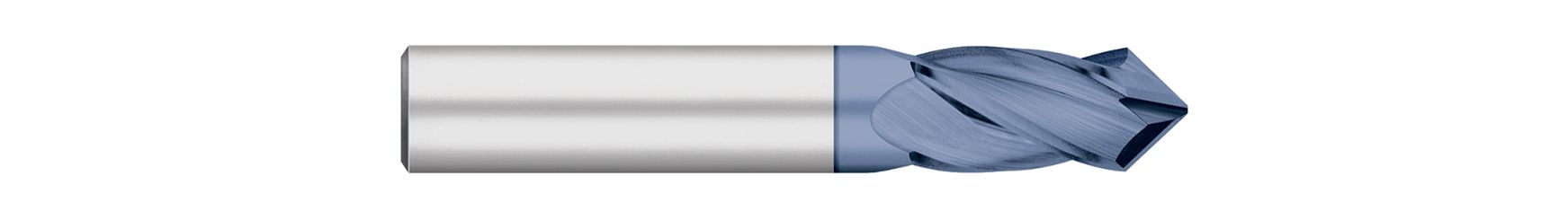

| Short Description | 0.6250" (5/8) Cutter DIA x 1.2500" (1-1/4) LOC x 60° included - 4 FL - Uncoated |
|---|---|
| Long Description | 0.6250" (5/8) Cutter DIA x 1.2500" (1-1/4) Length of Cut x 60° included Carbide Drill / End Mill, 4 Flutes, Uncoated |
| Point Angle | 60 |
| Included Angle | 60 |
| Angle per Side | 30 |
| Shank Diameter | 0.6250" (5/8) |
| Flutes | 4 |
| Weight | 0.494 |
| Overall Length | 3.5000" (3-1/2) |
| Cutter Diameter | 0.6250" (5/8) |
| Metric | N |
| Substrate | Carbide |
| Coating | UNCOATED |
| OAL | 3-1/2 |
| Length of Cut | 1.2500" (1-1/4) |
