Titan Cutting Tools
TC54364
265093
Specifications
| Short Description | 3 FL - 0.0300" Cutter DIA x 0.0450" LOC x 0.2500" (1/4) Reach - Uncoated |
|---|---|
| Shank Diameter | 0.1250" (1/8) |
| Overall Length | 2.5000" (2-1/2) |
| Metric | N |

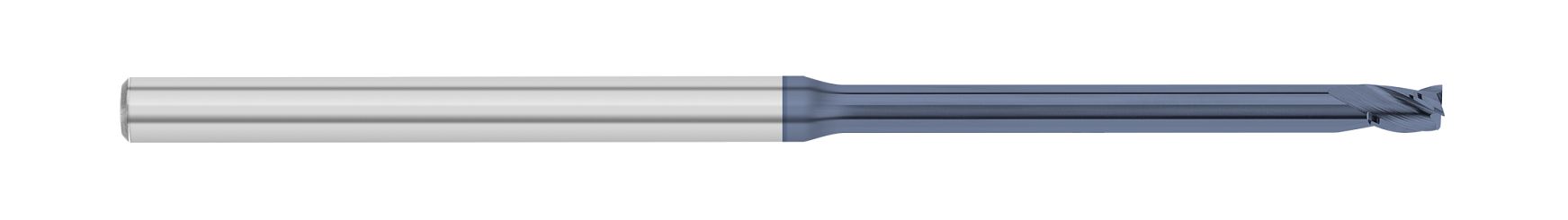

| Long Description | 0.0300" Cutter DIA x 0.0450" Length of Cut x 0.2500" (1/4) Reach Carbide Square End Mill, 3 Flutes, Uncoated |
| Length of Cut | 0.0450" |
| Coating | UNCOATED |
| Weight | 0.03 |
| Flutes | 3 |
| REACH | 0.250 |
| Cutter Diameter | 0.0300" |
| Substrate | Carbide |
| L.O.C | 0.045 |
| OAL | 2-1/2 |
