Titan Cutting Tools
TC61621

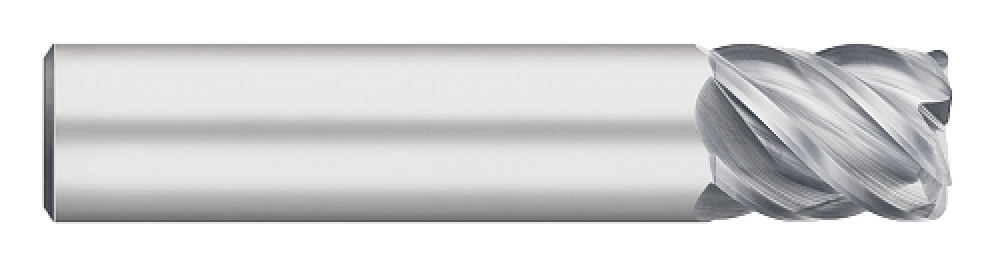

Corner Radius End Mill
Specifications
| Corner Radius | 0.0300" |
|---|---|
| Short Description | 5 FL - 0.3125" (5/16) Cutter DIA x 0.0300" Radius x 0.5000" (1/2) LOC - Uncoated |
| Overall Length | 2.0000" (2) |
| Long Description | 0.3125" (5/16) Cutter DIA x 0.0300" Radius x 0.5000" (1/2) Length of Cut Carbide Corner Radius End Mill, 5 Flutes, Uncoated |
| Metric | N |
| Length of Cut | 0.5000" (1/2) |
| Coating | UNCOATED |
| Weight | 0.053 |
| Shank Diameter | 0.3125" (5/16) |
| Flutes | 5 |
| Cutter Diameter | 0.3125" (5/16) |
| Profile | Corner Radius |
| Substrate | carbide |
