Titan Cutting Tools
TC63932
150324
Specifications
| Corner Radius | 0.0400" |
|---|---|
| Short Description | 5 FL - 0.5000" (1/2) Cutter DIA x 0.0400" Radius x 1.2500" (1-1/4) LOC - AlTiN Coated |
| Overall Length | 3.0000" (3) |

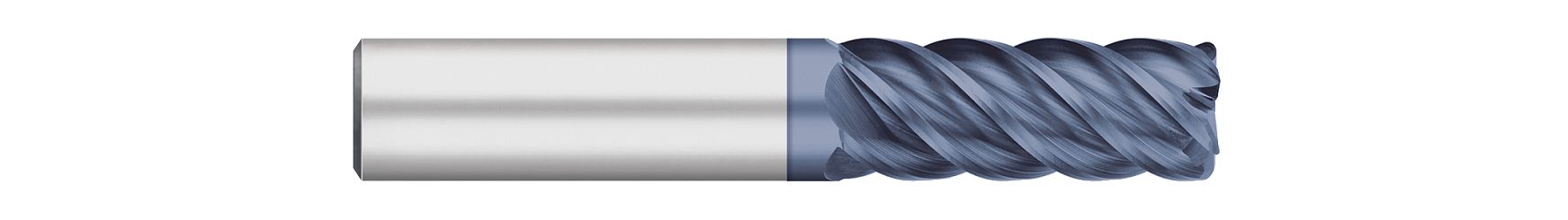

| Long Description | 0.5000" (1/2) Cutter DIA x 0.0400" Radius x 1.2500" (1-1/4) Length of Cut Carbide Corner Radius End Mill, 5 Flutes, AlTiN Coated |
| Metric | N |
| Length of Cut | 1.2500" (1-1/4) |
| Coating | ALTIN |
| Weight | 0.278 |
| Shank Diameter | 0.5000" (1/2) |
| Flutes | 5 |
| Cutter Diameter | 0.5000" (1/2) |
| Substrate | Carbide |
| OAL | 3 |
| Radius | 0.04 |
