Titan Cutting Tools
TC64827

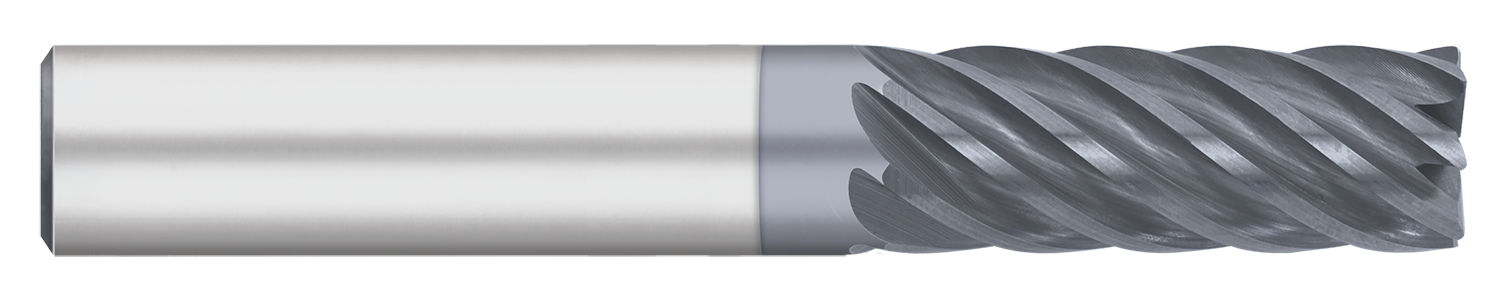

Titan Cutting Tools TC64827
Specifications
| Corner Radius | 0.0150" (1/64) |
|---|---|
| Short Description | 7 FL - 0.3125" (5/16) Cutter DIA x 0.0150" (1/64) Radius x 0.8125" (13/16) LOC - ALCRO-Max Coated |
| Overall Length | 2.5000" (2-1/2) |
| Long Description | 0.3125" (5/16) Cutter DIA x 0.0150" (1/64) Radius x 0.8125" (13/16) Length of Cut Carbide Variable Index Corner Radius End Mill, 7 Flutes, ALCRO-Max Coated |
| Metric | N |
| Length of Cut | 0.8125" (13/16) |
| Coating | ALCRO-MAX |
| Shank Diameter | 0.3125" (5/16) |
| Flutes | 7 |
| Cutter Diameter | 0.3125" (5/16) |
| Profile | Corner Radius |
| Substrate | carbide |
