Titan Cutting Tools
TC67313

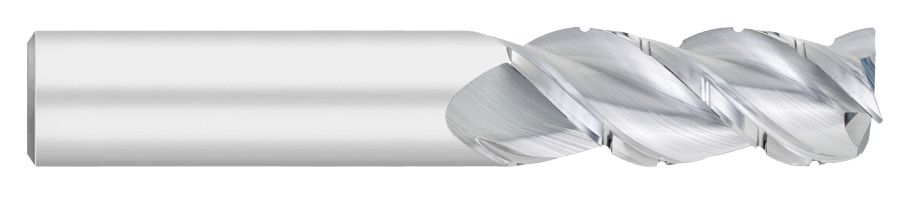

Corner Radius End Mill for Aluminum Chipbreaker
Specifications
| Corner Radius | 0.0600" |
|---|---|
| Short Description | 3 FL - 1.0000" (1) Cutter DIA x 0.0600" Radius x 1.7500" (1-3/4) LOC - Uncoated |
| Overall Length | 4.0000" (4) |
| Long Description | 1.0000" (1) Cutter DIA x 0.0600" Radius x 1.7500" (1-3/4) Length of Cut Carbide Corner Radius End Mill for Aluminum Chipbreaker, 3 Flutes, Uncoated |
| Metric | N |
| Length of Cut | 1.7500" (1-3/4) |
| Coating | UNCOATED |
| Weight | 1.32 |
| Shank Diameter | 1.0000" (1) |
| Flutes | 3 |
| Cutter Diameter | 1.0000" (1) |
| Profile | Corner Radius |
| Substrate | carbide |
