Titan Cutting Tools
TC67441

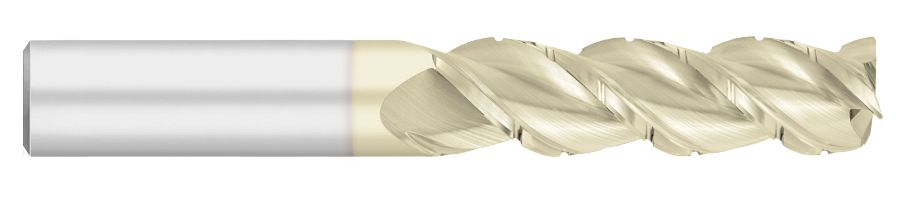

Corner Radius End Mill for Aluminum Chipbreaker
Specifications
| Corner Radius | 0.0400" |
|---|---|
| Short Description | 3 FL - 0.6250" (5/8) Cutter DIA x 0.0400" Radius x 2.3750" (2-3/8) LOC - ZrN Coated |
| Overall Length | 5.0000" (5) |
| Long Description | 0.6250" (5/8) Cutter DIA x 0.0400" Radius x 2.3750" (2-3/8) Length of Cut Carbide Corner Radius End Mill for Aluminum Chipbreaker, 3 Flutes, ZrN Coated |
| Metric | N |
| Length of Cut | 2.3750" (2-3/8) |
| Coating | ZRN |
| Weight | 0.658 |
| Shank Diameter | 0.6250" (5/8) |
| Flutes | 3 |
| Cutter Diameter | 0.6250" (5/8) |
| Profile | Corner Radius |
| Substrate | carbide |
