Titan Cutting Tools
TC74145
Titan Cutting Tools TC74145
Specifications
| Corner Radius | 0.0900" |
|---|---|
| Short Description | 4 FL - 0.3750" (3/8) Cutter DIA x 0.0900" Radius x 1.0000" (1) LOC - AlTiN Coated |
| Overall Length | 2.5000" (2-1/2) |

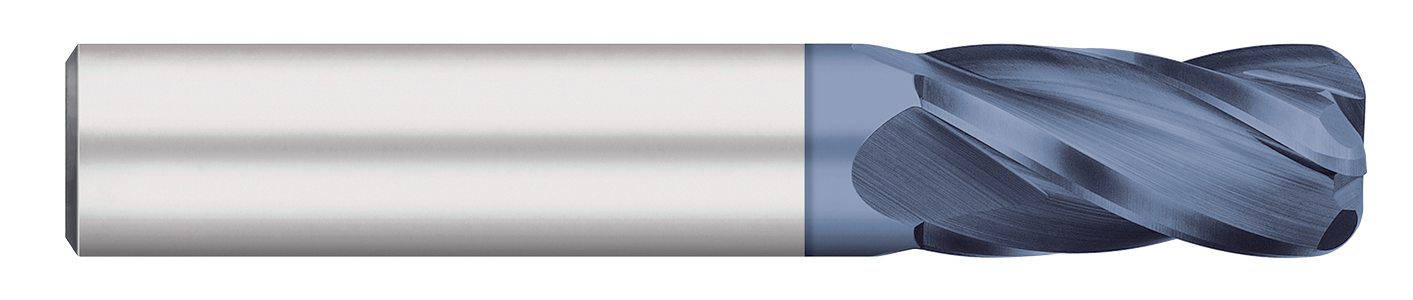

| Long Description | 0.3750" (3/8) Cutter DIA x 0.0900" Radius x 1.0000" (1) Length of Cut Carbide Corner Radius End Mill, 4 Flutes, AlTiN Coated |
| Metric | N |
| Length of Cut | 1.0000" (1) |
| Coating | ALTIN |
| Shank Diameter | 0.3750" (3/8) |
| Flutes | 4 |
| Cutter Diameter | 0.3750" (3/8) |
| Profile | Corner Radius |
| Substrate | Carbide |
