Titan Cutting Tools
TC74582
Titan Cutting Tools TC74582
Specifications
| Corner Radius | 0.0050" |
|---|---|
| Short Description | 4 FL - 0.1875" (3/16) Cutter DIA x 0.0050" Radius x 1.1250" (1-1/8) LOC - Uncoated |
| Overall Length | 3.0000" (3) |

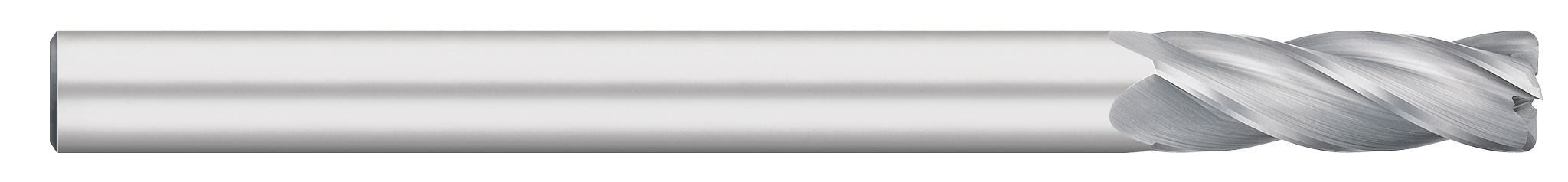

| Long Description | 0.1875" (3/16) Cutter DIA x 0.0050" Radius x 1.1250" (1-1/8) Length of Cut Carbide Corner Radius End Mill, 4 Flutes, Uncoated |
| Metric | N |
| Length of Cut | 1.1250" (1-1/8) |
| Coating | UNCOATED |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 4 |
| Cutter Diameter | 0.1875" (3/16) |
| Profile | Corner Radius |
| Substrate | Carbide |
