Titan Cutting Tools
TC84031
156418
Specifications

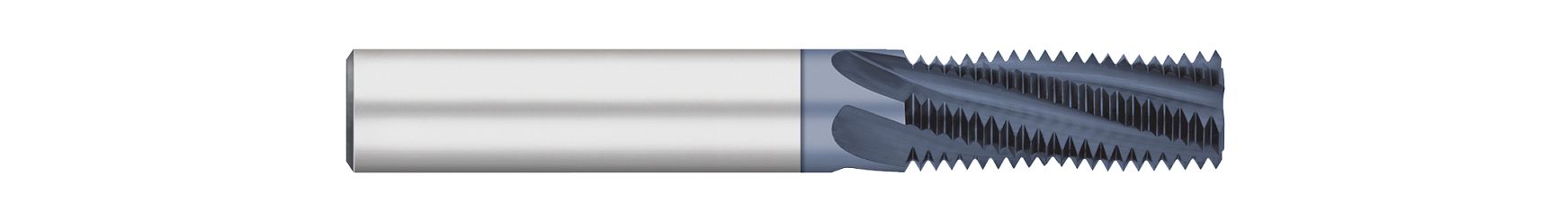

| Short Description | 9/16-12 - 0.3700" Cutter DIA x 0.8750" (7/8) LOC - 4 FL - AlTiN Coated |
|---|---|
| Coating | ALTIN |
| Long Description | 0.3700" Cutter DIA x 0.8750" (7/8) Length of Cut Carbide Multi-Form 9/16-12 Multi-Flute Thread Mill - UN Threads, 4 Flutes, AlTiN Coated |
| Thread Length | 0.875 |
| Shank Diameter | 0.5000" (1/2) |
| Flutes | 4 |
| Weight | 0.28 |
| Overall Length | 3.5000" (3-1/2) |
| Cutter Diameter | 0.3700" |
| Metric | N |
| Substrate | Carbide |
| Size | 9/16-12 |
| OAL | 3-1/2 |
| Cutting Diameter | 0.370 |
| Length of Cut | 0.8750" (7/8) |
