Titan Cutting Tools
TC84206
156561
Specifications

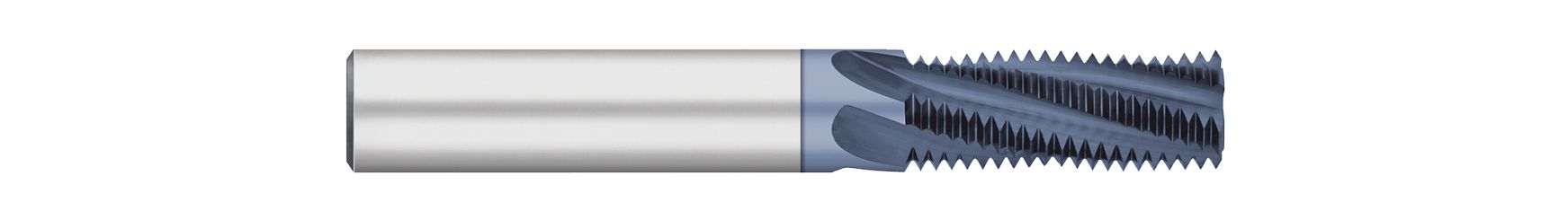

| Short Description | 3/8-18 - 0.3700" Cutter DIA x 0.6250" (5/8) LOC - 4 FL - AlTiN Coated |
|---|---|
| Coating | ALTIN |
| Long Description | 0.3700" Cutter DIA x 0.6250" (5/8) Length of Cut Carbide Multi-Form 3/8-18 Multi-Flute Thread Mill - NPT Pipe Threads, 4 Flutes, AlTiN Coated |
| Thread Length | 0.625 |
| Shank Diameter | 0.3750" (3/8) |
| Flutes | 4 |
| Weight | 0.148 |
| Overall Length | 3.0000" (3) |
| Cutter Diameter | 0.3700" |
| Metric | N |
| Substrate | Carbide |
| Size | 3/8-18 |
| OAL | 3 |
| Cutting Diameter | 0.370 |
| Length of Cut | 0.6250" (5/8) |
