Titan Cutting Tools
TC85308
276968
Specifications
| Coating | ALTIN |
|---|---|

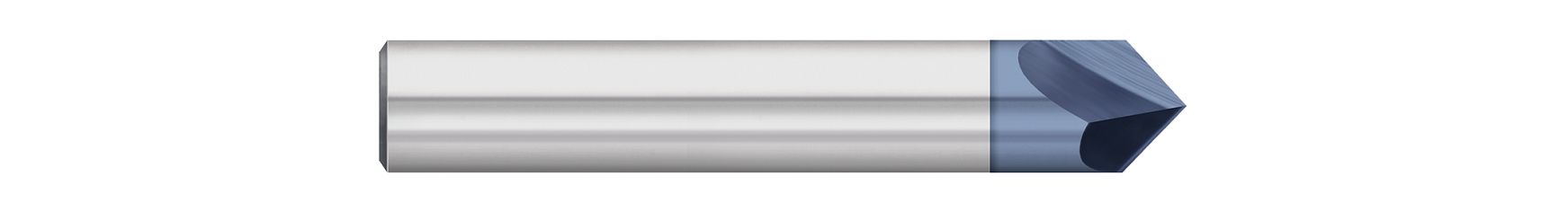

| Long Description | 0.3750" (3/8) Shank DIA x 60° Included Angle x 2.5000" (2-1/2) Overall Length X 0.0100" Tip DIA Carbide Pointed Chamfer Mill, 2 Flutes, AlTiN Coated |
| Short Description | 0.3750" (3/8) Shank DIA x 60° Included Angle - 2 FL - AlTiN Coated |
| Shank Diameter | 0.3750" (3/8) |
| Flutes | 2 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.3750" (3/8) |
| Metric | N |
| Substrate | Carbide |
| Length of Cut | 0.3250" |
| Angle per Side | 30 |
| Included Angle | 60 |
