Titan Cutting Tools
TC87762
253103
Specifications
| Coating | UNCOATED |
|---|---|

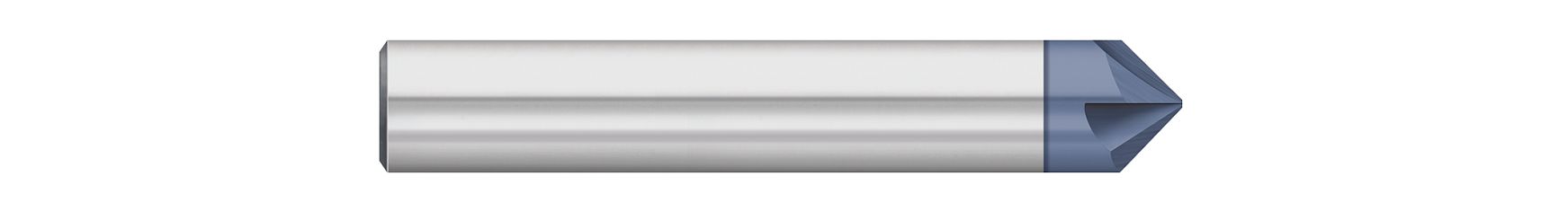

| Long Description | 0.3750" (3/8) Shank DIA x 100° Included Angle x 2.5000" (2-1/2) Overall Length X 0.0600" Tip DIA Carbide Tipped Off Chamfer Mill, 4 Flutes, Uncoated |
| Short Description | 0.3750" (3/8) Shank DIA x 100° Included Angle - 4 FL - Uncoated |
| Shank Diameter | 0.3750" (3/8) |
| Flutes | 4 |
| Weight | 0.128 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.3750" (3/8) |
| Metric | N |
| Substrate | Carbide |
| OAL | 2-1/2 |
| Length of Cut | 0.1320" |
| Angle per Side | 50 |
| Included Angle | 100 |
