Titan Cutting Tools
TC87921
253686
Specifications
| Coating | UNCOATED |
|---|---|

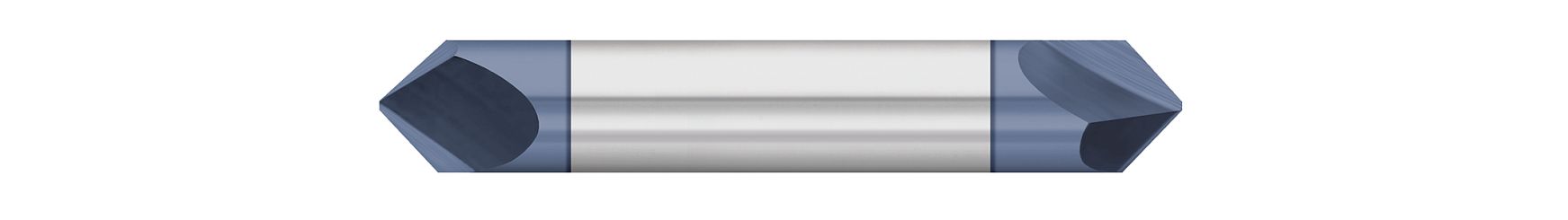

| Long Description | 0.3125" (5/16) Shank DIA x 120° Included Angle x 2.5000" (2-1/2) Overall Length X 0.0600" Tip DIA Carbide Tipped Off Chamfer Mill DE, 2 Flutes, Uncoated |
| Short Description | 0.3125" (5/16) Shank DIA x 120° Included Angle DE- 2 FL - Uncoated |
| Shank Diameter | 0.3125" (5/16) |
| Flutes | 2 |
| Weight | 0.089 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.3125" (5/16) |
| Metric | N |
| Substrate | Carbide |
| OAL | 2-1/2 |
| Length of Cut | 0.0730" |
| Angle per Side | 60 |
| Included Angle | 120 |
