Titan Cutting Tools
TC88125
254434
Specifications
| Coating | ALTIN |
|---|---|

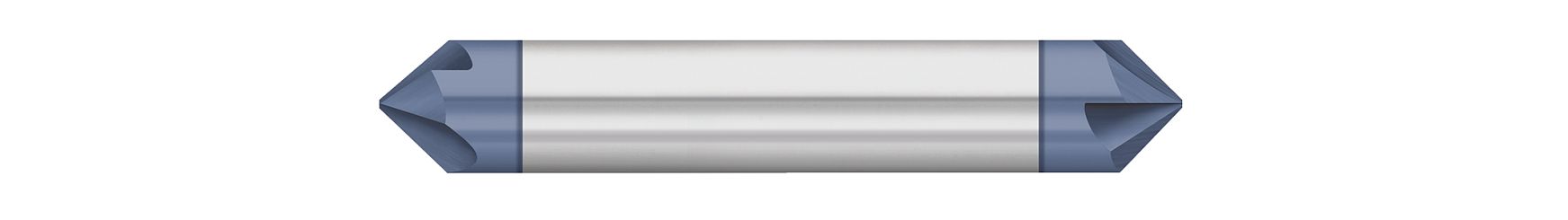

| Long Description | 0.5000" (1/2) Shank DIA x 60° Included Angle x 3.0000" (3) Overall Length X 0.0800" Tip DIA Carbide Tipped Off Chamfer Mill DE, 4 Flutes, AlTiN Coated |
| Short Description | 0.5000" (1/2) Shank DIA x 60° Included Angle DE- 4 FL - AlTiN Coated |
| Shank Diameter | 0.5000" (1/2) |
| Flutes | 4 |
| Weight | 0.278 |
| Overall Length | 3.0000" (3) |
| Cutter Diameter | 0.5000" (1/2) |
| Metric | N |
| Substrate | Carbide |
| OAL | 3 |
| Length of Cut | 0.3640" |
| Angle per Side | 30 |
| Included Angle | 60 |
