Titan Cutting Tools
TT75375
240802
Specifications
| Overall Length | 2.3750" (2-3/8) |
|---|---|
| Tap Style | TAPER |

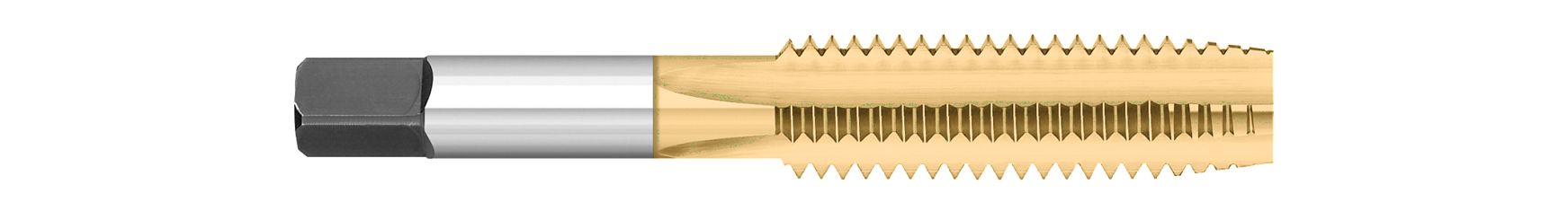

| Short Description | 10 - 32 Size x 0.8750" (7/8) Thread Length x H3 Limit x 0.1940" Shank DIA, High Speed Steel - 4 FL - TiN Coated |
| Thread Size | 10 - 32 |
| Long Description | 10 - 32 Size x 0.8750" (7/8) Thread Length x H3 Limit x 0.1940" Shank DIA, High Speed Steel Hand Tap, 4 Flutes, TiN Coated |
| Shank Diameter | 0.1940" |
| Flutes | 4 |
| Weight | 0.021 |
| Metric | N |
| Thread Length | 7/8 |
| Substrate | high speed steel |
| Coating | TIN |
| OAL | 2-3/8 |
| Length of Cut | 0.8750" (7/8) |
| Square Size | .152 DIA X 1/4 LG |
