Titan Cutting Tools
TT90375S
203113
Specifications
| Overall Length | 2.7188" |
|---|---|
| Tap Style | TAPER |

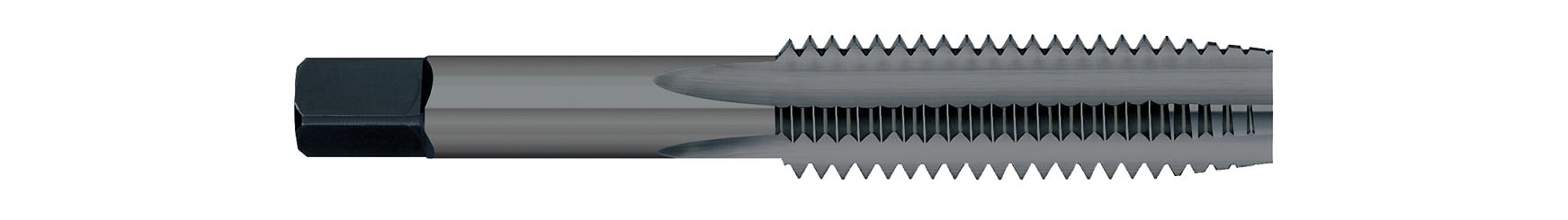

| Short Description | 5/16-18 Size x 1.1250" (1-1/8) Thread Length x H3 Limit x 0.3180" Shank DIA, High Speed Steel - 4 FL - Steam Oxide Coated |
| Thread Size | 5/16-18 |
| Long Description | 5/16-18 Size x 1.1250" (1-1/8) Thread Length x H3 Limit x 0.3180" Shank DIA, High Speed Steel Hand Tap, 4 Flutes, Steam Oxide Coated |
| Shank Diameter | 0.3180" |
| Flutes | 4 |
| Weight | 0.048 |
| Metric | N |
| Thread Length | 1-1/8 |
| Substrate | high speed steel |
| Coating | STEAM-OXIDE |
| OAL | 2-23/32 |
| Length of Cut | 1.1250" (1-1/8) |
| Square Size | .238 |
| Square Length | 3/8 |
