Titan Cutting Tools

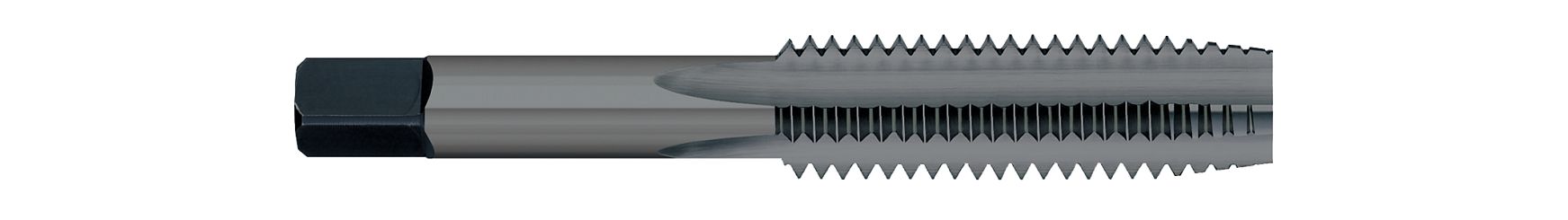

TT90617NS
205599
Specifications
| Overall Length | 4.2500" (4-1/4) |
|---|---|
| Tap Style | BOTTOM |
| Short Description | 3/4-16 Size x 2.0000" (2) Thread Length x H3 Limit x 0.5900" Shank DIA, High Speed Steel - 4 FL - Nitride & Steam Oxide |
| Thread Size | 3/4-16 |
| Long Description | 3/4-16 Size x 2.0000" (2) Thread Length x H3 Limit x 0.5900" Shank DIA, High Speed Steel Hand Tap, 4 Flutes, Nitride & Steam Oxide |
| Shank Diameter | 0.5900" |
| Flutes | 4 |
| Weight | 0.294 |
| Metric | N |
| Thread Length | 2 |
| Substrate | high speed steel |
| Coating | NITRIDE & STEAM OXIDE |
| OAL | 4-1/4 |
| Length of Cut | 2.0000" (2) |
| Square Size | .442 |
| Square Length | 11/16 |
