Titan Cutting Tools
TT92212
259285
Specifications
| Type | SP/PT Bottom |
|---|---|
| Thread Size | 3-48 |
| Short Description | 3-48 Size x 0.5000" (1/2) Thread Length x H2 Limit x 0.1410" Shank DIA, High Speed Steel - 2 FL - TiN Coated |
| Overall Length | 1.8125" (1-13/16) |

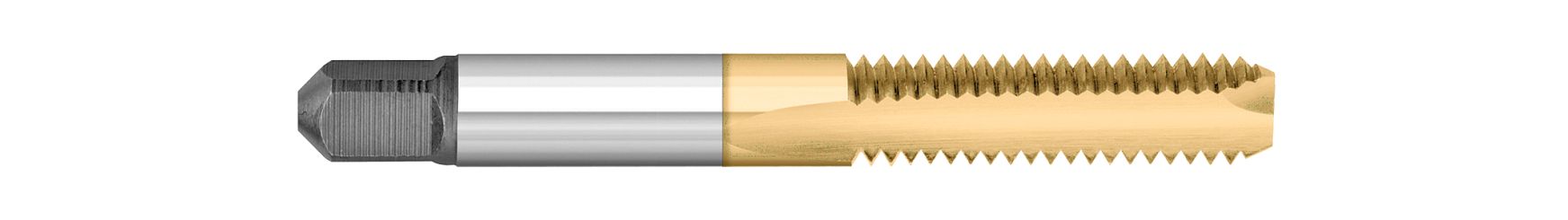

| Long Description | 3-48 Size x 0.5000" (1/2) Thread Length x H2 Limit x 0.1410" Shank DIA, High Speed Steel Spiral Point Bottoming Tap, 2 Flutes, TiN Coated |
| Shank Diameter | 0.1410" |
| Flutes | 2 |
| Weight | 0.012 |
| Metric | N |
| Thread Length | 1/2 |
| Substrate | high speed steel |
| Coating | TIN |
| OAL | 1-13/16 |
| Length of Cut | 0.5000" (1/2) |
| Square Size | .110 |
| Square Length | 3/16 |
