Titan Cutting Tools
TT93106
211627
Specifications

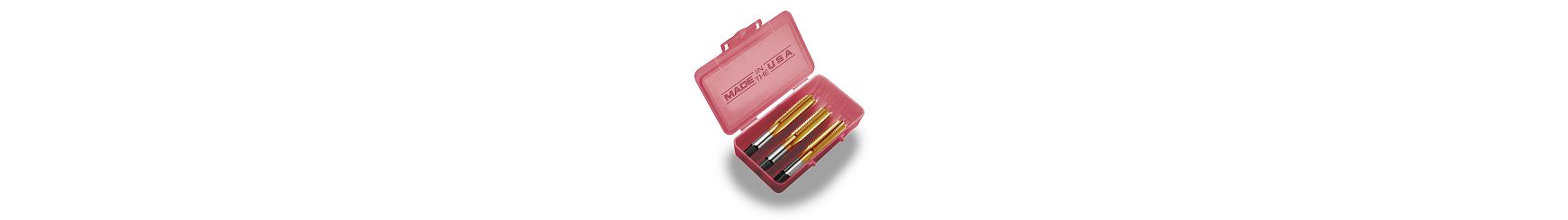

| Long Description | Hand Tap Set - 3 Pc - Taper, Plug, Bottom Leads - High Speed Steel - Metric - Size: M5 x 0.8, Limit: D4, Flutes: 4 |
|---|---|
| Short Description | Hand Tap Set - 3 Pc - Taper, Plug, Bottom Leads - High Speed Steel - Metric - Size: M5 x 0.8, Limit: D4, Flutes: 4 |
| Shank Diameter | 0.1940" |
| Flutes | 4 |
| Weight | 0.082 |
| Tap Style | TAP SET |
| Overall Length | 2.3750" (2-3/8) |
| Thread Size | M5 X 0.8 |
| Metric | N |
| Thread Length | 7/8 |
| Substrate | high speed steel |
| Coating | UNCOATED |
| OAL | 2-3/8 |
| Length of Cut | 0.8750" (7/8) |
| Square Size | .152 |
| Square Length | 1/4 |
