Titan Cutting Tools
TT94008
212408
Specifications
| Thread Size | 3/8-18 |
|---|---|

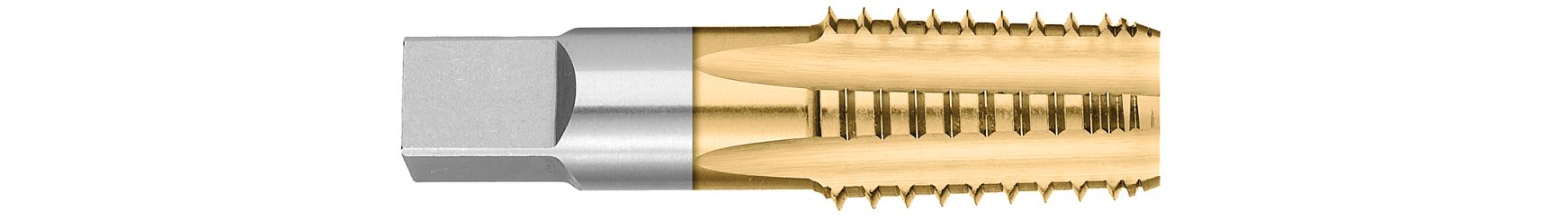

| Long Description | 3/8-18 Size x 1.0625" (1-1/16) Thread Length x 0.7000" Shank DIA, High Speed Steel Taper Pipe Tap - NPTF Dryseal Interupted, 5 Flutes, Uncoated |
| Overall Length | 2.5625" (2-9/16) |
| Short Description | 3/8-18 Size x 1.0625" (1-1/16) Thread Length x 0.7000" Shank DIA, High Speed Steel - 5 FL - Uncoated |
| Shank Diameter | 0.7000" |
| Flutes | 5 |
| Weight | 0.219 |
| Metric | N |
| Thread Length | 1-1/16 |
| Substrate | high speed steel |
| Type | NPTF |
| Coating | UNCOATED |
| OAL | 2-9/16 |
| Length of Cut | 1.0625" (1-1/16) |
| Square Size | .531 |
| Square Length | 1/2 |
