Titan Cutting Tools
TT94112
212606
Specifications
| Type | SP/PT Plug |
|---|---|
| Thread Size | 7/16-20 |
| Short Description | 7/16-20 Size x 1.4375" (1-7/16) Thread Length x H3 Limit x 0.3230" Shank DIA, High Speed Steel - 3 FL - Uncoated |
| Overall Length | 6.0000" (6) |

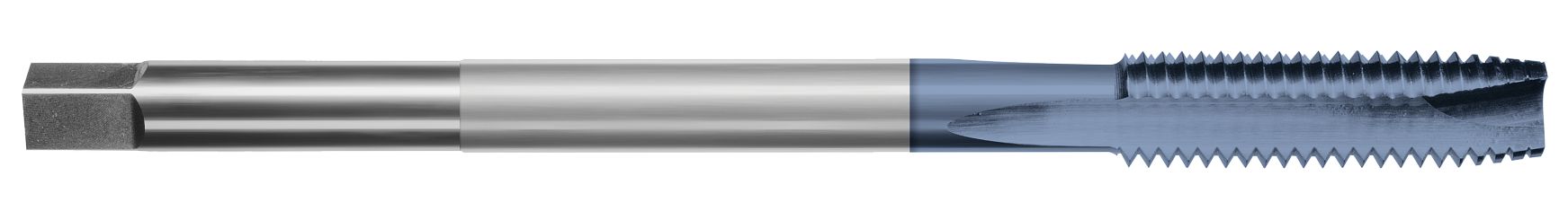

| Long Description | 7/16-20 Size x 1.4375" (1-7/16) Thread Length x H3 Limit x 0.3230" Shank DIA, High Speed Steel Extension Tap - Spiral Point Plug, 3 Flutes, Uncoated |
| Shank Diameter | 0.3230" |
| Flutes | 3 |
| Weight | 0.151 |
| Metric | N |
| Thread Length | 1-7/16 |
| Substrate | high speed steel |
| Thread Type | NF |
| Coating | UNCOATED |
| OAL | 6 |
| Length of Cut | 1.4375" (1-7/16) |
| Square Size | 0.242 |
| Square Length | 13/32 |
