Titan Cutting Tools
TT94202TIN
212742
Specifications
| Thread Size | 1/4-18 |
|---|---|

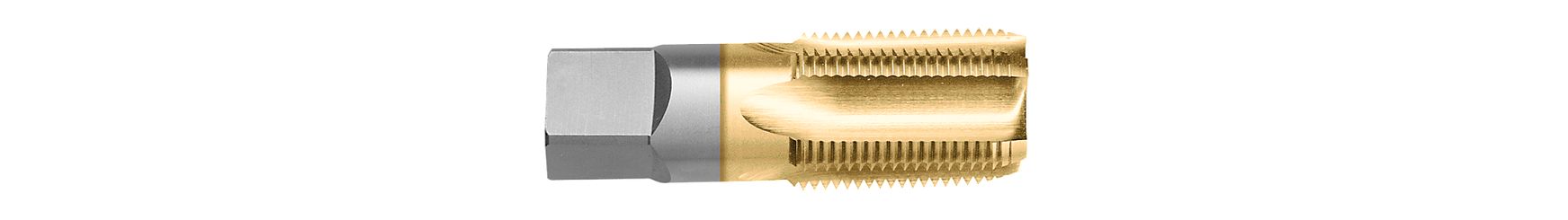

| Long Description | 1/4-18 Size x 1.0625" (1-1/16) Thread Length x 0.5625" (9/16) Shank DIA, High Speed Steel Straight Pipe Tap, 4 Flutes, TiN Coated |
| Overall Length | 2.4375" (2-7/16) |
| Short Description | 1/4-18 Size x 1.0625" (1-1/16) Thread Length x 0.5625" (9/16) Shank DIA, High Speed Steel - 4 FL - TiN Coated |
| Shank Diameter | 0.5625" (9/16) |
| Flutes | 4 |
| Weight | 0.128 |
| Metric | N |
| Thread Length | 1-1/16 |
| Substrate | high speed steel |
| Type | NPS |
| Coating | TIN |
| OAL | 2-7/16 |
| Length of Cut | 1.0625" (1-1/16) |
| Square Size | .421 |
| Square Length | 7/16 |
