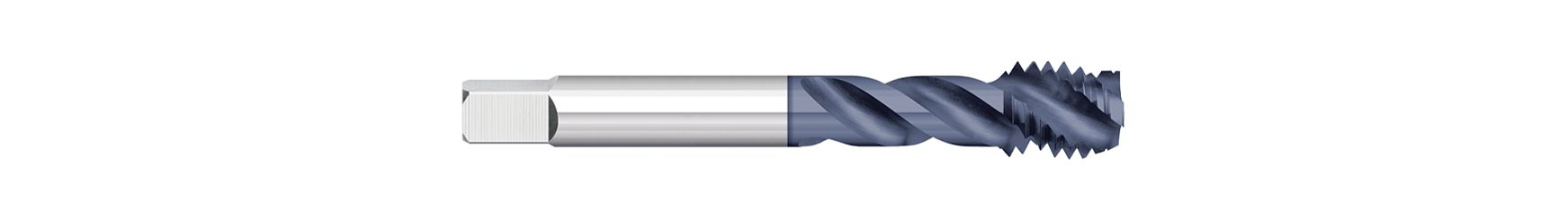

Titan Cutting Tools
TT97607
263621
Specifications
| Type | Semi Bottom |
|---|---|
| Thread Size | 4-40 |
| Short Description | 4-40 Size x 0.5630" Thread Length x H2 Limit x 0.1410" Shank DIA, High Vanadium Powdered Metal - 2 FL - TiCN Coated |
| Overall Length | 1.8750" (1-7/8) |
| Coating | TICN |
| Long Description | 4-40 Size x 0.5630" Thread Length x H2 Limit x 0.1410" Shank DIA, High Vanadium Powdered Metal High Performance - Spiral Flute Semi-Bottoming Tap, 2 Flutes, TiCN Coated |
| Shank Diameter | 0.1410" |
| Flutes | 2 |
| Weight | 0.012 |
| Metric | N |
| Thread Length | .563 |
| Substrate | high vanadium powdered metal |
| OAL | 1-7/8 |
| Length of Cut | 0.5630" |
| Square Size | .110 |
| Square Length | 3/16 |
