Titan Cutting Tools
TT99459
214905
Specifications
| Type | SP/PT Plug |
|---|---|
| Thread Size | 5/16-18 |
| Short Description | 5/16-18 Size x 1.1250" (1-1/8) Thread Length x H3 Limit x 0.3180" Shank DIA, High Speed Steel - 2 FL - TiN Coated |
| Overall Length | 2.7188" |

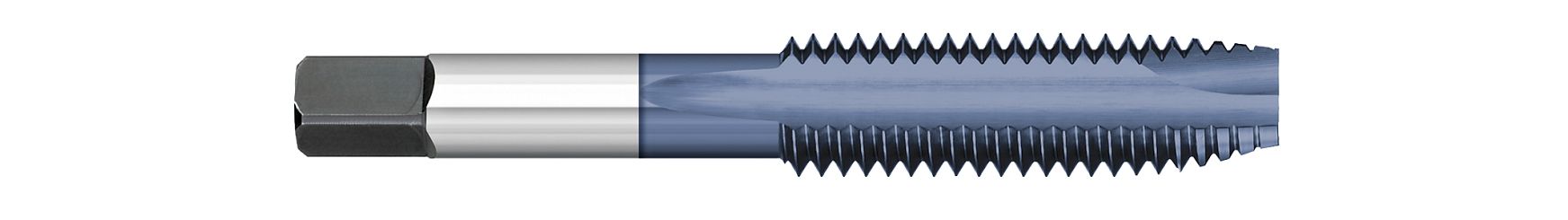

| Long Description | 5/16-18 Size x 1.1250" (1-1/8) Thread Length x H3 Limit x 0.3180" Shank DIA, High Speed Steel Spiral Point Plug Tap, 2 Flutes, TiN Coated |
| Shank Diameter | 0.3180" |
| Flutes | 2 |
| Weight | 0.051 |
| Metric | N |
| Thread Length | 1-1/8 |
| Substrate | high speed steel |
| Coating | TIN |
| OAL | 2-23/32 |
| Length of Cut | 1.1250" (1-1/8) |
| Square Size | .238 |
| Square Length | 3/8 |
