Tungaloy
TUN5614301

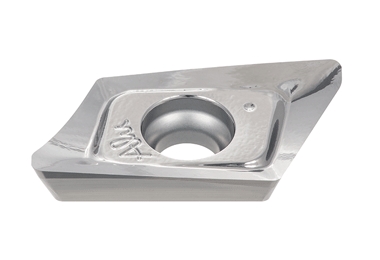

XVCT160516R-AJ TH10
Specifications
| Material | Carbide |
|---|---|
| Corner Radius (Inch) | 0.06 |
| Thickness (Inch) | 0.23 |
| Short Description | XVCT16-AJ-TUN5614301 -I |
| Style | XVCT |
| Unit Of Measure | Imperial |
| Country of Origin | Japan |
| Grade | TH10 |
| Wiper Edge Length (Decimal) | 0.04 |
| Applicable Material | Cast Iron, Hard Materials, Non Ferrous Metals, Hi Temp Alloys |
| Cutting Edge Length (Decimal) | 0.84 |
| Depth of Cut Maximum (Decimal) | 0.59 |
| Insert Width (Decimal) | 0.441 |
| Maximum Feed per Tooth (Decimal) | 0.014 |
| Minimum Feed per Tooth (Decimal) | 0.003 |
| Base Item Number | TUN5614301 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Body Material | Carbide |
| Measurement Type | Inch |
