Tungaloy
TUN6860100

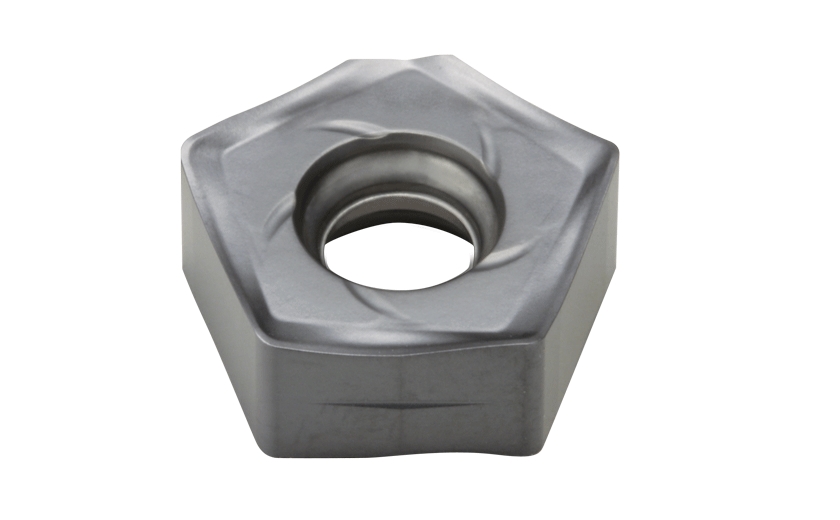

PNCU0905GNER-W AH725
Specifications
| Material | Carbide |
|---|---|
| Corner Radius (Inch) | 0.03 |
| Thickness (Inch) | 0.23 |
| Short Description | PNCU0905-W-TUN6860100 -I |
| Style | PNCU |
| Unit Of Measure | Imperial |
| Country of Origin | Japan |
| Grade | AH725 |
| Inscribed Circle Diameter (Decimal) | 0.48 |
| Wiper Edge Length (Decimal) | 0.15 |
| Applicable Material | Steel, Stainless Steel, Hi Temp Alloys |
| Depth of Cut Maximum (Decimal) | 0.08 |
| Maximum Feed per Tooth (Decimal) | 0.016 |
| Minimum Feed per Tooth (Decimal) | 0.006 |
| Base Item Number | TUN6860100 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Body Material | Carbide |
| Measurement Type | Inch |
