YG-1
25595

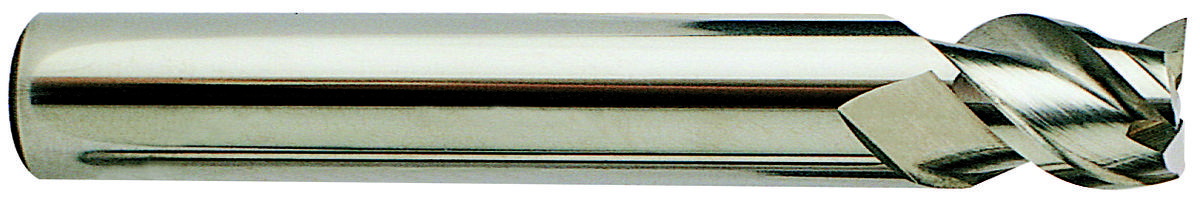

5/8 x 5/8 x 3/4 x 3 3FL STUB H-45 ALU-POWER
Specifications
| Number Of Flutes | 3 |
|---|---|
| Length Of Cut (Metric) | 19.05 |
| Material | Carbide |
| Diameter (Metric) | 15.88 |
| Overall Length (Inch) | 3.0000 |
| Diameter (Inch) | 0.6250 |
| Length Of Cut (Inch) | 0.7500 |
| Short Description | 3FL STUB H-45 ALU-POWER |
| Series | E5980 |
| Weight | 0.4380 |
| Cut Type | Center Cut |
| Overall Length (mm) | 7.62 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.6250 |
| Coating | Bright |
| Size | 5/8 x 5/8 x 3/4 x 3 |
| Shank Style | Plain |
| Application | N |
| Shank Diameter (mm) | 1.59 cm |
