YG-1
29280

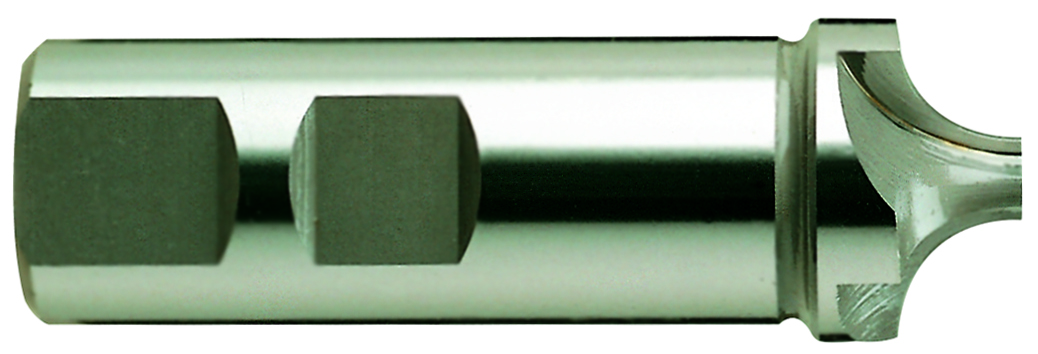

7/8 x 3/4 x 2 1/2 x 4 1/2 4FL CORNER ROUNDING 8% COBALT
Specifications
| Shank Diameter (Inch) | 0.7500 |
|---|---|
| Overall Length (Inch) | 4.5000 |
| Length Of Cut (Metric) | 63.50 |
| Length Of Cut (Inch) | 2.5000 |
| Type | HSSCo8 & HSS 4 Flute Corner Rounding |
| Number Of Flutes | 4 |
| Short Description | 4FL CORNER ROUNDING 8% COBALT |
| Material | HSSCo8 |
| Weight | 2.4715 |
| Cut Type | Corner Rounding |
| Overall Length (mm) | 11.43 cm |
| Cutting Direction | Right |
| Diameter (Metric) | 22.23 |
| Coating | Bright |
| Size | 7/8 x 3/4 x 2 1/2 x 4 1/2 |
| Series | E2237 |
| Shank Style | Flat |
| Diameter (Inch) | 0.8750 |
| Application | P |
| Shank Diameter (mm) | 1.91 cm |
