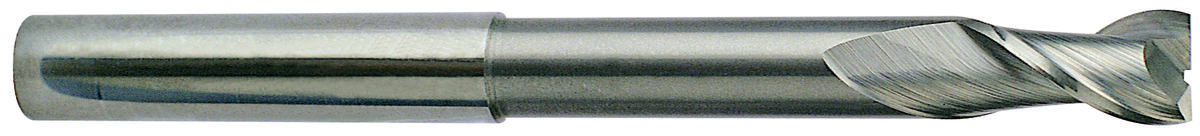

YG-1
39584TC
3/8x3/8x4 N.365 2FL H-37 EXTENDED NECK ALU-POWER TICN-COATING
Specifications
| Number Of Flutes | 2 |
|---|---|
| Length Of Cut (Metric) | 12.70 |
| Material | Carbide |
| Diameter (Metric) | 9.53 |
| Overall Length (Inch) | 4.0000 |
| Diameter (Inch) | 0.3750 |
| Length Of Cut (Inch) | 0.5000 |
| Short Description | 2FL H-37 EXTENDED NECK ALU-POWER TICN-COATING |
| Series | E5976 |
| Weight | 0.2170 |
| Cut Type | Center Cut |
| Overall Length (mm) | 10.16 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.3750 |
| Neck Diameter | 0.3450 |
| Length Below Shank (Metric) | 57.2 |
| Coating | TiCN |
| Size | 3/8x3/8x4 N.365 |
| Shank Style | Plain |
| Application | N |
| Shank Diameter (mm) | 9.53 mm |
