YG-1
39593

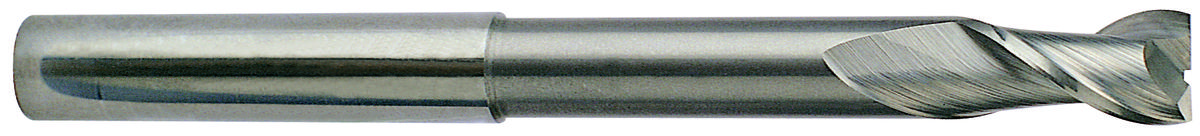

1/2x1/2x5 N.240 2FL H-37 EXTENDED NECK ALU-POWER
Specifications
| Number Of Flutes | 2 |
|---|---|
| Length Of Cut (Metric) | 15.88 |
| Material | Carbide |
| Diameter (Metric) | 12.70 |
| Overall Length (Inch) | 5.0000 |
| Diameter (Inch) | 0.5000 |
| Length Of Cut (Inch) | 0.6250 |
| Short Description | 2FL H-37 EXTENDED NECK ALU-POWER |
| Series | E5976 |
| Weight | 0.4740 |
| Cut Type | Center Cut |
| Overall Length (mm) | 12.7 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.5000 |
| Neck Diameter | 0.4700 |
| Length Below Shank (Metric) | 57.2 |
| Coating | Bright |
| Size | 1/2x1/2x5 N.240 |
| Shank Style | Plain |
| Application | N |
| Shank Diameter (mm) | 1.27 cm |
