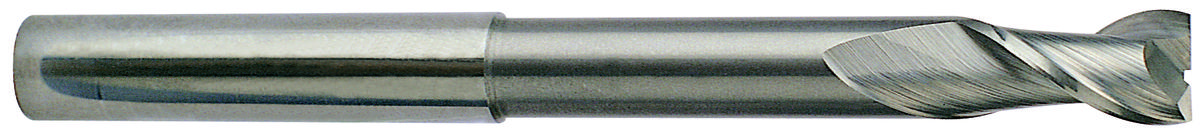

YG-1
39902TC
5/8x5/8x6 N.615 2FL H-37 EXTENDED NECK ALU-POWER TICN-COATING
Specifications
| Number Of Flutes | 2 |
|---|---|
| Length Of Cut (Metric) | 19.05 |
| Material | Carbide |
| Diameter (Metric) | 15.88 |
| Overall Length (Inch) | 6.0000 |
| Diameter (Inch) | 0.6250 |
| Length Of Cut (Inch) | 0.7500 |
| Short Description | 2FL H-37 EXTENDED NECK ALU-POWER TICN-COATING |
| Series | E5976 |
| Weight | 0.8680 |
| Cut Type | Center Cut |
| Overall Length (mm) | 15.24 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.6250 |
| Neck Diameter | 0.5850 |
| Length Below Shank (Metric) | 82.6 |
| Coating | TiCN |
| Size | 5/8x5/8x6 N.615 |
| Shank Style | Plain |
| Application | N |
| Shank Diameter (mm) | 1.59 cm |
