YG-1
43305CE

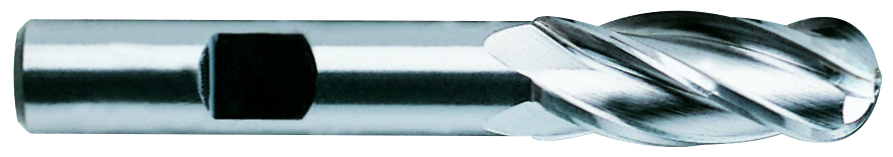

3/8 x 3/8 x 3/4 x 2 1/2 4FL REG SE BALL TIALN EXTREME COATED 8% COBALT
Specifications
| Coating/Finish | TiAIN E |
|---|---|
| Shank Type | Flat |
| Diameter (Metric) | 9.53 |
| Overall Length (Inch) | 2-1/2 |
| Length Of Cut (Inch) | 3/4 |
| Overall Length (Metric) | 63.5 |
| Cutting Direction | Right |
| Type | HSSCo8 4 Flute Regular Lenth Ball Nose |
| Shank Size (Inch) | 3/8 |
| Material | HSSCo8 |
| Length Of Cut (Metric) | 19.05 |
| Number Of Flutes | 4 |
| Diameter (Inch) | 3/8 |
| Unit Of Measure | Fractional |
| Short Description | 4FL REG SE BALL TIALN EXTREME COATED 8% COBALT |
| Shank Diameter (Decimal) | 0.38 |
| Shank Diameter (Metric) | 9.53 |
| Application | P |
| Length of Cut | 3/4 Inch |
| Series | E2020 |
| Diameter | 3/8 Inch |
| Workpiece Material | Steel |
| Ball Nose Radius (Decimal) | 0.19 |
| Ball Nose Radius (Metric) | 4.76 |
| Ball Nose Radius (Fractional) | 3/16 |
| Cut Type | Center Cut |
| Base Item Number | 4FL REG SE BALL TIALN EXTREME COATED 8% COBALT |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Weight | 0.0850 |
| Shank Diameter (Inch) | 0.3750 |
| Size | 3/8 x 3/8 x 3/4 x 2 1/2 |
| Shank Style | Flat |
