YG-1
44016

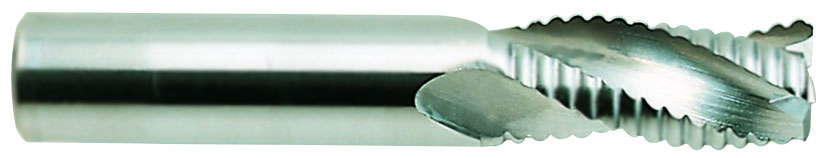

1/4 x 1/4 x 3/4 x 2-1/2 3FL H-30 ROUGHING ALU-POWER CARBIDE END MILL
Specifications
| Number Of Flutes | 3 |
|---|---|
| Length Of Cut (Metric) | 19.05 |
| Material | Carbide |
| Diameter (Metric) | 6.35 |
| Overall Length (Inch) | 2.5000 |
| Type | Carbide, 3 Flute Roughing |
| Diameter (Inch) | 0.2500 |
| Length Of Cut (Inch) | 0.7500 |
| Short Description | 3FL H-30 ROUGHING ALU-POWER CARBIDE END MILL |
| Series | E5E44 |
| Weight | 0.0615 |
| Cut Type | Center Cut |
| Overall Length (mm) | 6.35 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.2500 |
| Coating | Bright |
| Size | 1/4 x 1/4 x 3/4 x 2-1/2 |
| Shank Style | Plain |
| Application | N |
| Shank Diameter (mm) | 6.35 mm |
