YG-1
44321CN

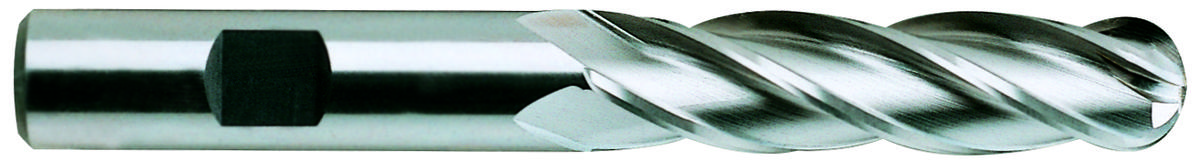

1/2 x 1/2 x 2 x 4 4FL LONG SE BALL TIN COATED 8% COBALT
Specifications
| Coating/Finish | TiN |
|---|---|
| Shank Type | Flat |
| Diameter (Metric) | 12.7 |
| Overall Length (Inch) | 4 |
| Length Of Cut (Inch) | 2 |
| Overall Length (Metric) | 101.6 |
| Cutting Direction | Right |
| Type | HSSCo8 4 Flute Long Length Ball Nose |
| Shank Size (Inch) | 1/2 |
| Material | HSSCo8 |
| Length Of Cut (Metric) | 50.8 |
| Number Of Flutes | 4 |
| Diameter (Inch) | 1/2 |
| Unit Of Measure | Fractional |
| Short Description | 4FL LONG SE BALL TIN COATED 8% COBALT |
| Shank Diameter (Decimal) | 0.5 |
| Shank Diameter (Metric) | 12.7 |
| Application | P |
| Length of Cut | 2 Inch |
| Series | E2021 |
| Diameter | 1/2 Inch |
| Workpiece Material | Steel |
| Ball Nose Radius (Decimal) | 0.25 |
| Ball Nose Radius (Metric) | 6.35 |
| Ball Nose Radius (Fractional) | 1/4 |
| Cut Type | Center Cut |
| Base Item Number | 4FL LONG SE BALL TIN COATED 8% COBALT |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Weight | 0.1970 |
| Shank Diameter (Inch) | 0.5000 |
| Size | 1/2 x 1/2 x 2 x 4 |
| Shank Style | Flat |
