YG-1
45043

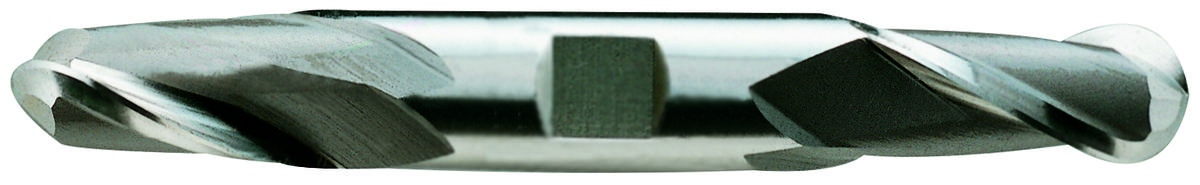

3/16 x 3/8 x 7/16 x 3-1/8 2FL REG DE BALL HSS
Specifications
| Coating/Finish | Bright |
|---|---|
| Shank Type | Flat |
| Diameter (Metric) | 4.76 |
| Overall Length (Inch) | 3-1/8 |
| Length Of Cut (Inch) | 7/16 |
| Double Ended | Yes |
| Overall Length (Metric) | 79.38 |
| Cutting Direction | Right |
| Type | 2 FL DE HSS, Regular Length Ball Nose Double |
| Shank Size (Inch) | 3/8 |
| Material | HSS |
| Length Of Cut (Metric) | 11.11 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 3/16 |
| Unit Of Measure | Fractional |
| Short Description | 2FL REG DE BALL HSS |
| Shank Diameter (Decimal) | 0.38 |
| Shank Diameter (Metric) | 9.53 |
| Application | P |
| Length of Cut | 7/16 Inch |
| Series | E1112 |
| Diameter | 3/16 Inch |
| Workpiece Material | Steel |
| Ball Nose Radius (Decimal) | 0.09 |
| Ball Nose Radius (Metric) | 2.38 |
| Ball Nose Radius (Fractional) | 3/32 |
| Cut Type | Center Cut |
| Base Item Number | 2FL REG DE BALL HSS |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Weight | 0.0845 |
| Shank Diameter (Inch) | 0.3750 |
| Size | 3/16 x 3/8 x 7/16 x 3-1/8 |
| Shank Style | Flat |
