YG-1
45048

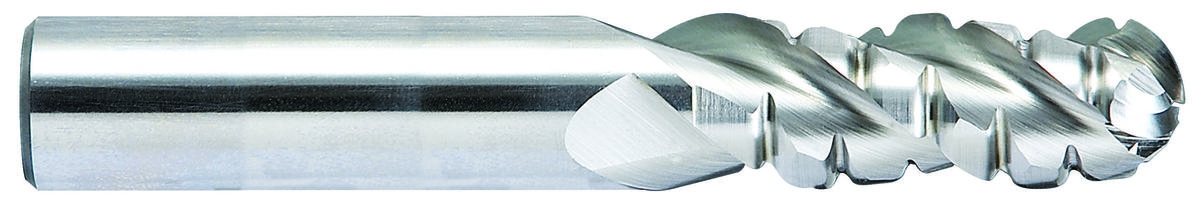

3/4 x 3/4 x 1-5/8 x 4 3FL H-30 BALL ROUGHING ALU-POWER CARBIDE END MILL
Specifications
| Number Of Flutes | 3 |
|---|---|
| Length Of Cut (Metric) | 41.28 |
| Material | Carbide |
| Diameter (Metric) | 19.05 |
| Overall Length (Inch) | 4.0000 |
| Type | Carbide, 3 Flute Roughing Ball Nose |
| Diameter (Inch) | 0.7500 |
| Length Of Cut (Inch) | 1.6250 |
| Short Description | 3FL H-30 BALL ROUGHING ALU-POWER CARBIDE END MILL |
| Series | E5E45 |
| Weight | 0.7320 |
| Cut Type | Center Cut |
| Overall Length (mm) | 10.16 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.7500 |
| Coating | Bright |
| Size | 3/4 x 3/4 x 1-5/8 x 4 |
| Shank Style | Plain |
| Application | N |
| Shank Diameter (mm) | 1.91 cm |
