YG-1
51579

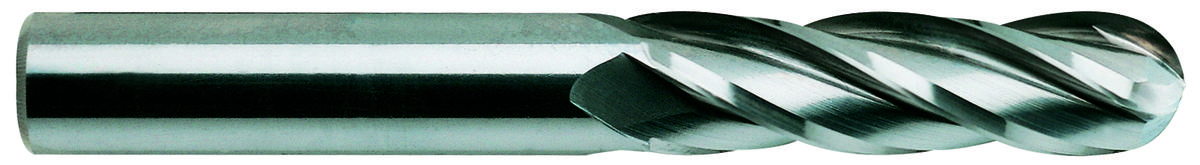

5/16 x 5/16 x 1-1/8 x 3 4FL LONG SE BALL CARBIDE
Specifications
| Coating/Finish | Bright |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 7.9 |
| Overall Length (Inch) | 3 |
| Length Of Cut (Inch) | 1-1/8 |
| Overall Length (Metric) | 76.2 |
| Cutting Direction | Right |
| Type | 4 FLUTE LONG LENGTH BALL NOSE |
| Shank Size (Inch) | 5/16 |
| Material | Carbide |
| Length Of Cut (Metric) | 28.6 |
| Number Of Flutes | 4 |
| Diameter (Inch) | 5/16 |
| Unit Of Measure | Fractional |
| Short Description | 4FL LONG SE BALL CARBIDE |
| Shank Diameter (Decimal) | 0.31 |
| Shank Diameter (Metric) | 7.9 |
| Application | P |
| Length of Cut | 1-1/8 Inch |
| Series | E5060 |
| Helix Angle | 30 degrees |
| Diameter | 5/16 Inch |
| Workpiece Material | Steel |
| Ball Nose Radius (Fractional) | 5/32 |
| Cut Type | Center Cut |
| Base Item Number | 4FL LONG SE BALL CARBIDE |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Weight | 0.1150 |
| Shank Diameter (Inch) | 0.3125 |
| Diameter (Decimal) | 0.3125 |
| Size | 5/16 x 5/16 x 1-1/8 x 3 |
| Shank Style | Plain |
