YG-1
60391CF

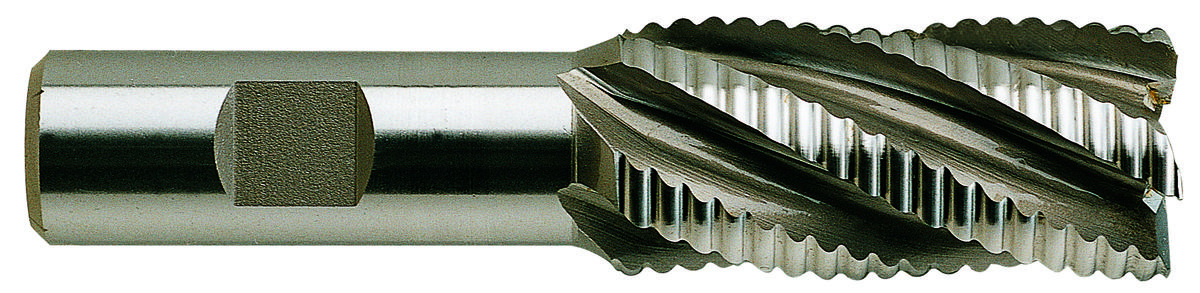

7/8 x 3/4 x 1 7/8 x 4 1/8 5FL REG SE ROUGH M42 TIALN FUTURA COATED
Specifications
| Number Of Flutes | 5 |
|---|---|
| Length Of Cut (Metric) | 47.63 |
| Material | HSSCo8 |
| Diameter (Metric) | 22.23 |
| Overall Length (Inch) | 4.1250 |
| Type | HSSCo8 5 Flute Regular Length Coarse Pitch Roughing |
| Diameter (Inch) | 0.8750 |
| Length Of Cut (Inch) | 1.8750 |
| Short Description | 5FL REG SE ROUGH M42 TIALN FUTURA COATED |
| Series | E2170 |
| Weight | 0.5780 |
| Cut Type | End Cutting |
| Overall Length (mm) | 10.478 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.7500 |
| Coating | TiAIN F |
| Size | 7/8 x 3/4 x 1 7/8 x 4 1/8 |
| Shank Style | Flat |
| Application | P |
| Shank Diameter (mm) | 1.91 cm |
