YG-1
63305CF

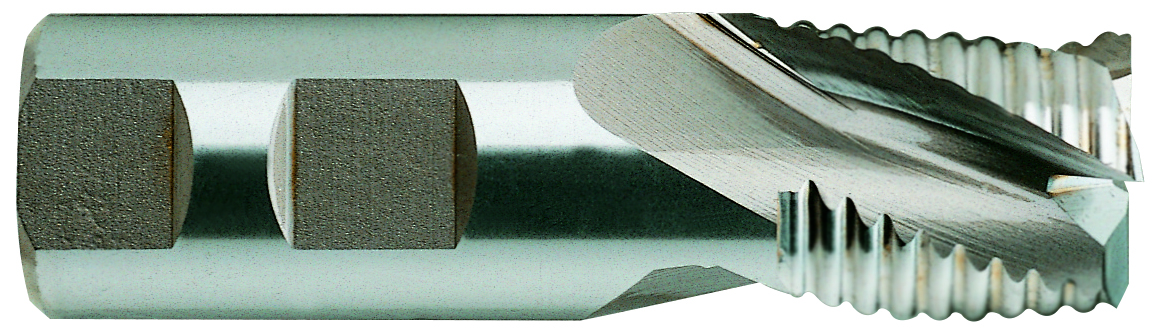

3/8 x 3/8 x 3/8 x 2 5/32 3FL STUB SE ROUGHING TIALN FUTURA COATED 8% COBALT
Specifications
| Number Of Flutes | 3 |
|---|---|
| Length Of Cut (Metric) | 9.53 |
| Material | HSSCo8 |
| Diameter (Metric) | 9.53 |
| Overall Length (Inch) | 2.1563 |
| Type | HSSCo9 3 Flute Stub Length Coarse Pitch Roughing Center Cutting |
| Diameter (Inch) | 0.3750 |
| Length Of Cut (Inch) | 0.3750 |
| Short Description | 3FL STUB SE ROUGHING TIALN FUTURA COATED 8% COBALT |
| Series | E2241 |
| Weight | 0.0775 |
| Cut Type | Center Cutting |
| Overall Length (mm) | 5.477 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.3750 |
| Coating | TiAIN F |
| Size | 3/8 x 3/8 x 3/8 x 2 5/32 |
| Shank Style | Flat |
| Application | P |
| Shank Diameter (mm) | 9.53 mm |
