YG-1
64337CF

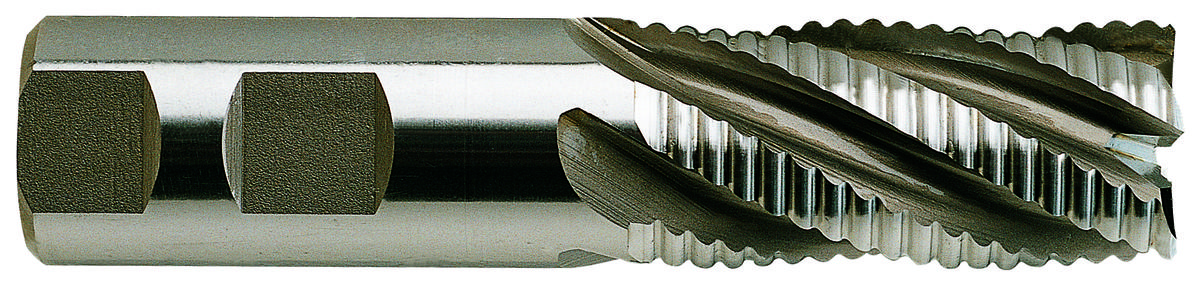

5/8 x 5/8 x 1 5/8 x 3 3/4 4FL REG CC ROUGH M42 TiALN FUTURA COATED
Specifications
| Number Of Flutes | 4 |
|---|---|
| Length Of Cut (Metric) | 41.28 |
| Material | HSSCo8 |
| Diameter (Metric) | 15.88 |
| Overall Length (Inch) | 3.7500 |
| Type | HSSCo8 4 Flute Regular Coarse Pitch Roughing Center Cutting |
| Diameter (Inch) | 0.6250 |
| Length Of Cut (Inch) | 1.6250 |
| Short Description | 4FL REG CC ROUGH M42 TiALN FUTURA COATED |
| Series | E2195 |
| Weight | 0.2975 |
| Cut Type | Center Cutting |
| Overall Length (mm) | 9.525 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.6250 |
| Coating | TiAIN F |
| Size | 5/8 x 5/8 x 1 5/8 x 3 3/4 |
| Shank Style | Flat |
| Application | P |
| Shank Diameter (mm) | 1.59 cm |
