YG-1
65426CF

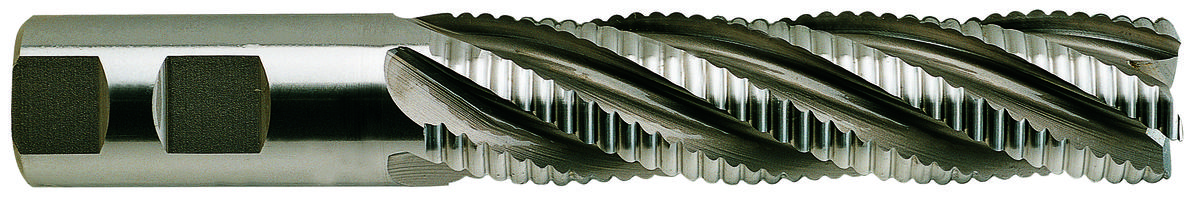

1 x 1 x 4 x 6 1/2 5FL LONG CC ROUGH M42 TIALN FUTURA COATING
Specifications
| Number Of Flutes | 5 |
|---|---|
| Length Of Cut (Metric) | 101.60 |
| Material | HSSCo8 |
| Diameter (Metric) | 25.40 |
| Overall Length (Inch) | 6.5000 |
| Type | HSSCo8 5 Flute Long Length Coarse Pitch Roughing Center Cutting |
| Diameter (Inch) | 1.0000 |
| Length Of Cut (Inch) | 4.0000 |
| Short Description | 5FL LONG CC ROUGH M42 TIALN FUTURA COATING |
| Series | E2197 |
| Weight | 1.2215 |
| Cut Type | Center Cutting |
| Overall Length (mm) | 16.51 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 1.0000 |
| Coating | TiAIN F |
| Size | 1 x 1 x 4 x 6 1/2 |
| Shank Style | Flat |
| Application | P |
| Shank Diameter (mm) | 2.54 cm |
